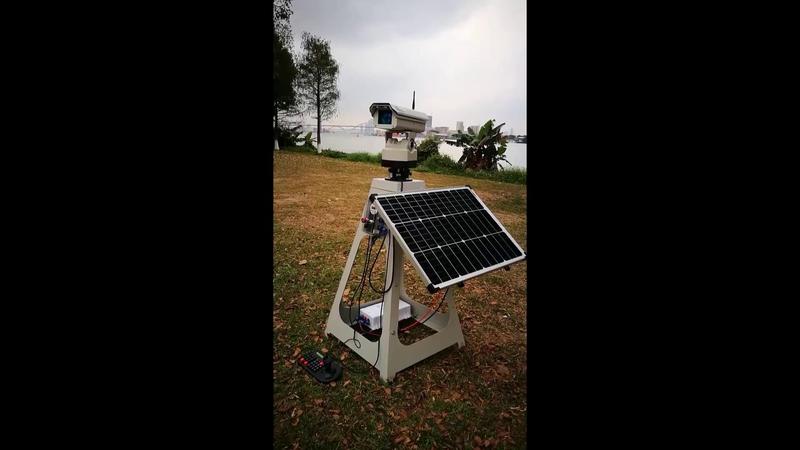

FDA Approved IOT Laser Bird Repellent with TPC & APP Control
To solve the problems with hazards of birdinfestations in the power, agriculture, and airport sectors, we have developedthe IoT Laser Bird Repellent. Equipped with a touch screen computer (TPC) poweredby an ARM 800MHz processor, this device manages and controls the entire systemand enables data exchange with the cloud server. It features a built-in 4G router / WIFI and adopts the latest
IoT technology, allowing users to check thedevice’s operating status via a mobile APP
anytime andanywhere. The device’s built- in program offers multiplespecial scanning modes including automatic cruising, random scanning, sinewave scanning, and fixed-point repelling.
It supports two laser output modes—CW/Flash which can be switched automatically at scheduled
times. Additionally, the main power supply and laser can be turned on/off at presetschedules.
With rich functions at an affordable price, this IoT Laser BirdRepellent has been widely applied in industries such as power, agriculture and avaition.
Features:
- Equipped with a 4.3-inch TPC powered byan ARM 800MHz processor, it performs program control and management of thedevice, and is responsible for data exchange with the cloud server.
- Adopts green laser, which birds are mostsensitive to, and causes no harm to birds, humans (with eye contact avoided)and other animals.
- Features a 1W laser, with an effectiverange of up to several hundred meters.
- Supports two laser output modes: CW & Flash, which can be switched freely.
- Capable of operating automatically 24x7without manual supervision.
- Built-in 4G router with WIFI hotspotenables users to check the device's operating status
and operate the device via mobile APP anytime and anywhere.
- Multiple brackets are available forselection, including tripods, fixed poles, mobile brackets, hoop-type bracketsand angle steel-type brackets. It can meet the installation requirements
of different scenarios such as power substations, angle steel towers, cement polesand steel pipe
poles (towers) etc.
- It is approved with CE, FDA, FCC and EPA.
NO. | ITEM | SPECS | |
1 | TPC | LCD Screen | 4.3" TFT |
Resolution | 480×272 | ||
Processor | ARM 800Hz | ||
Memory | 128M | ||
System space | 128M | ||
Serial port | RS485 | ||
Ethernet port | 1x10/100M | ||
3 | LASER | Work voltage | DC12V |
Laser output power | 1000±50mW | ||
Wavelength | 525±5nm | ||
Laser color | Green | ||
Laser mode | CW & Flash | ||
Laser beam (at aperture) | φ50mm | ||
Effective range | > 1000 meters | ||
4 | PAN-TILT | Rotation speed | Pan 0-15°/S，Tilt 0-5°/S |
Angle range | Pan 0-355°, Tilt 0-90° | ||
Scan modes | Auto cruise, random scan, sine wave scan etc. | ||
Work temp. | -25°-+55° | ||
Waterproof | IP56 | ||
5 | REMOTE CONTROL | 2G/3G/4G | Mobile APP, supports remote control of device timed on/off, pan-tilt control, real-time display of rotation angle, on/off recordings, electronic map etc. |
